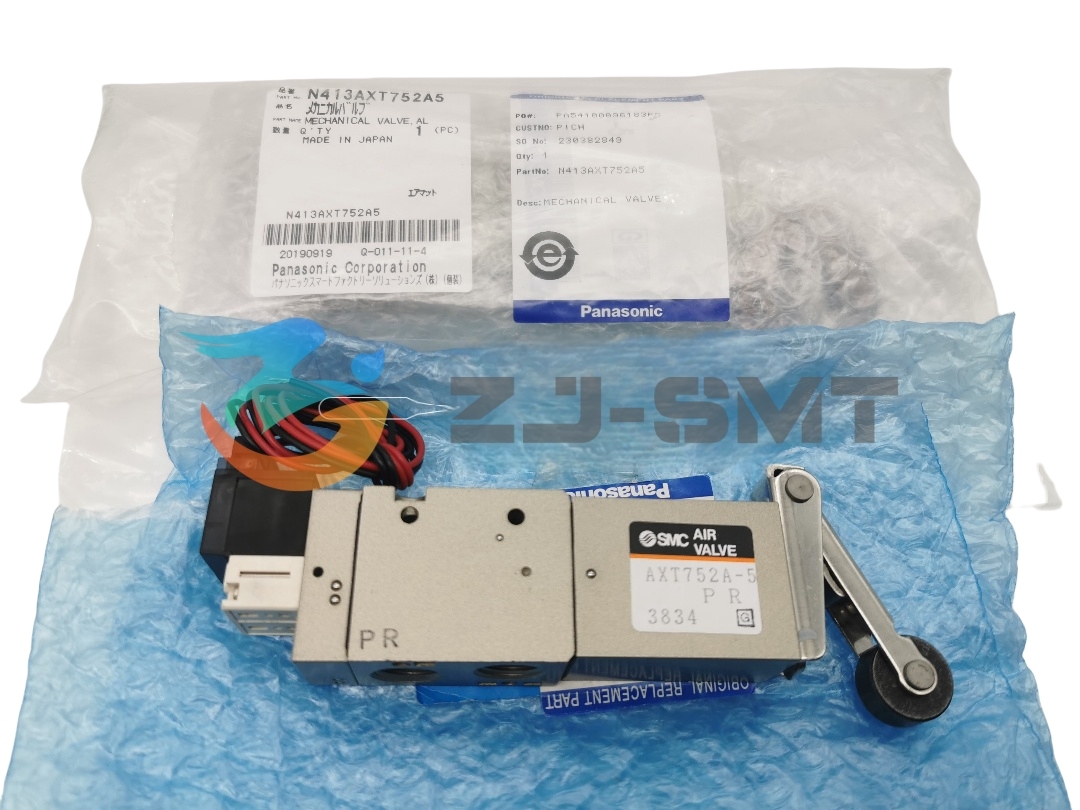

Key Features

• Precision build: the valve is machined to close tolerances so its response stays repeatable cycle after cycle, which is what a high-cycle SMT line asks of a small pneumatic part.
• Electric actuation, mechanical body: the coil drives the valve, while the mechanical design keeps sliding contact low so wear builds slowly across long production runs.
• Stable flow control: metering holds steady through a shift, keeping the timing of air-driven functions predictable instead of drifting as the valve ages.
• Drop-in replacement: it mounts in the same position as the part it replaces, so the swap fits inside a normal maintenance window rather than needing the assembly to be rebuilt.
• Wholesale and repeat supply: this valve is ordered by plants running several Panasonic lines and by the distributors who support them. As a solenoid valve supplier we can add it to a larger spare-parts order.

Specifications

Installation & Commissioning

1. Lock out the machine and vent the air supply before opening the valve block, and confirm the pressure gauge reads zero.
2. Record the orientation, port positions and hose routing of the old valve — a phone photo at this stage prevents the most common first-run fault.
3. Remove the old valve and inspect the mating face, seals and fittings; replace anything showing hardening, cuts or deformation before the new valve goes in.
4. Fit the replacement in the same orientation and reconnect the tubing to the ports you recorded, tightening the fittings by hand first and then seating them properly.
5. Restore air pressure gradually and check every joint for leaks before returning power to the machine.
6. Run a short dry cycle or a test board, then log the change — machine, date and valve number — so the next service interval can be judged from real data.

Scale & Supply Capability

ZJ-SMT supplies Panasonic SMT and PCB assembly equipment and spare parts to manufacturers worldwide. Our range covers pick-and-place machines, axial and radial insertion equipment, solder paste inspection systems, and feeder spare parts, with both new and used options available. We support bulk orders, and machine condition and availability are confirmed with you before ordering. Whether you are expanding a line, replacing a worn feeder part, or sourcing equipment for a new project, send us your model numbers and our team will come back with a suitable solution and quotation.
