| Item | Detail |
|---|---|

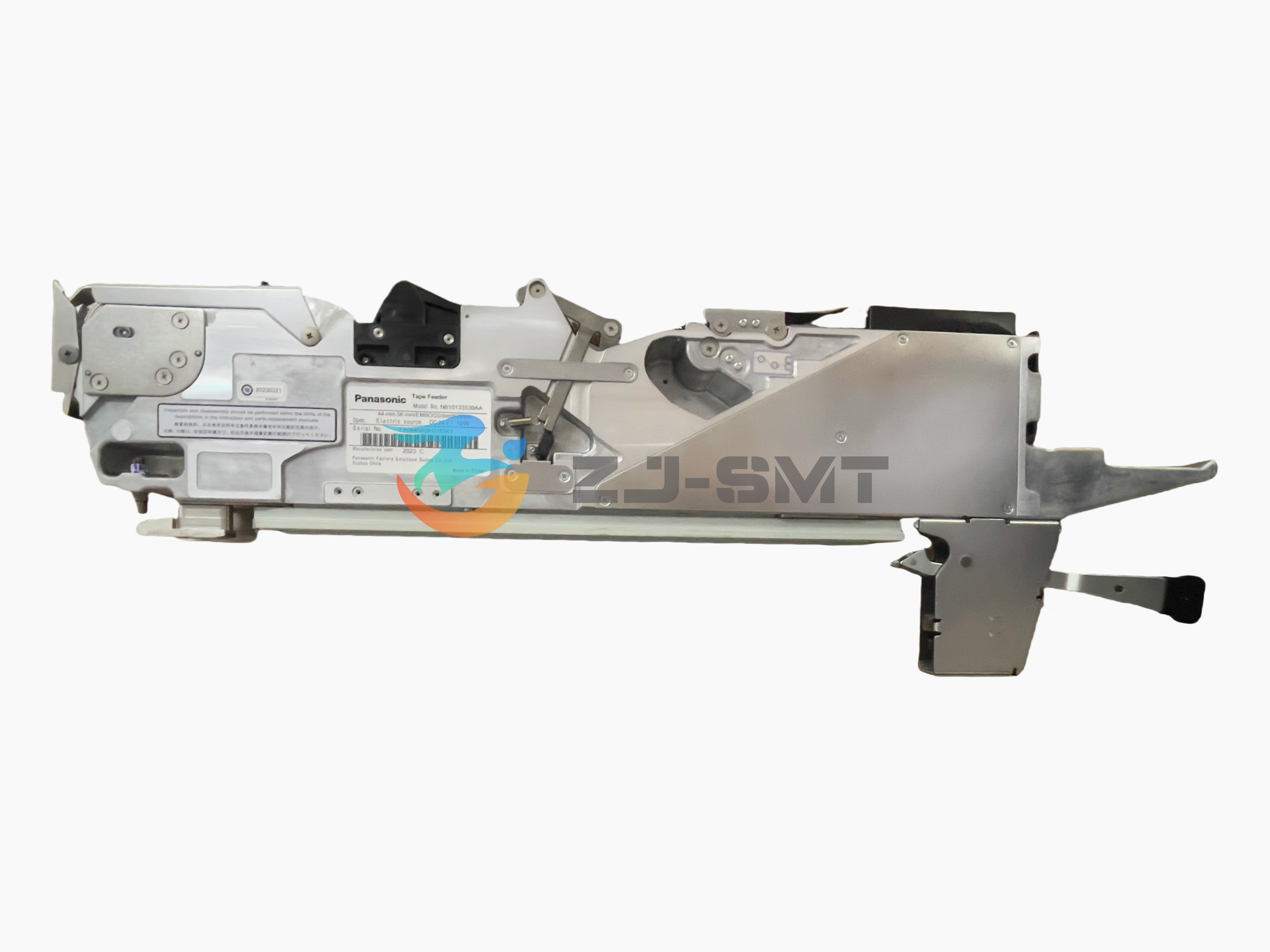

| Part number | N610133539AA |
| Feeder type | Panasonic SMT tape feeder |
| Carrier tape | 44 mm and 56 mm reels |
| Machine platform | Panasonic SMT placement lines |
| Function | Indexes taped SMT components to the placement head |
| Operating profile | High-speed, continuous surface-mount production |
| Supply basis | Replacement units and complete feeder banks, bulk quantities |
ZJ-SMT supplies Panasonic SMT and PCB assembly equipment and spare parts to manufacturers worldwide. Our range covers pick-and-place machines, axial and radial insertion equipment, solder paste inspection systems, and feeder spare parts, with both new and used options available. We support bulk orders, and machine condition and availability are confirmed with you before ordering. Whether you are expanding a line, replacing a worn feeder part, or sourcing equipment for a new project, send us your model numbers and our team will come back with a suitable solution and quotation.
Yes — this model accepts both 44 mm and 56 mm carrier reels, so a wide-tape position does not need a second feeder body. When a position switches widths, the reel is changed and the tape path is set for the reel in use. Tell us which widths you run and we will confirm what the changeover involves on your bank.
It follows the Panasonic wide-tape feeder standard, and your machine model is what confirms whether the bank layout matches. Other pick and place machine manufacturers work to different feeder standards, so a mixed-brand line needs the matching unit on each machine. Send your model number and we will check the fit before the order is confirmed.
Wide tape carries the larger parts — heavy connectors, power devices and big IC packages that will not sit in a narrow pocket. They are placed with a wider nozzle, and the placement head only picks reliably when each pocket stops in the right place. If you are unsure which width a part needs, the reel label normally states the carrier tape size.
Those are narrower-tape feeders with their own bodies and tape paths, while this model is the wide-reel member of the family. Match the feeder to the reel your component arrives on, because the body, tape path and index are sized to the reel width. The two formats do not interchange in the same slot.
If a feeder misfeeds at speed, drifts out of index or tears cover tape even after cleaning and correct reel loading, the tape path is usually worn rather than mis-set. Check the mechanical parts during scheduled maintenance so a worn unit is swapped out in a service window instead of mid-shift. Keeping a spare on the shelf turns a mid-shift failure into a few minutes of downtime rather than a lost shift.
Keep the tape path clear of paper dust and adhesive residue, load every reel at its correct width, and inspect the mechanical parts on the maintenance schedule before a fault stops the line. A feeder that has been in storage is worth running on the bench before it goes back onto the bank. If indexing starts to drift, stop and inspect the tape path before changing any settings.
